UTT-WOC2000

  • Integrated WiFi / 3G router and full-featured phone system for small business
  • Surf the internet
  • 3-way voice conference
  • Mobile extension with WiFi Smartphone
  • Voice and video communication
  • In-house WLAN
  • USB for sharing files

Wireless Office Communication System,which includes WOC2011/2002, combines the functions of the IP-based PBX telephone systems with the full featured 3G/WLAN broadband router to deliver an all-in-one communication system for small business and home. With the WOC2011/2002 your communication and working terminals such as legacy and video phones, computers, webcam, laptop, tablets, smart phones, USB storage are interconnected via in-house wireless-N or public 3G broadband network and legacy telephony network (PSTN) and Internet Telephony Service Provider (ITSP), no matter where you are. The WOC2011/2002 is so easy to configure that a fully working private network with data, voice and video communication capability can be set up in minutes.



Highlights

  • One system with all the communication functions that helps to grow your business and save budget
  • Creates an office network with high speed wire and wireless data connection as well as legacy telephone lines
  • Supports business phone system features, such as voicemail, transfer, conference, hold, hunt groups, and automated attendant
  • Compatible with SIP based new generation voice terminals, including Smartphone, pad and softphone
  • Significantly reduce the cost and maintenance effort on office wiring





Advantages

  • Dual USB 2.0 for storage and 3G, supporting WCDMA and CDMA2000
  • WiFi 802.11 b/g/n with double antenna
  • QoS scheme providing high priority to voice stream
  • Built-in SIP proxy and supports eight SIP clients
  • SIP trunk connection to IMS and NGN
  • 2 analog ports to phone / fax machine or PSTN



Product models

Model

FXS

FXO

UTT-WOC2011

1

1

UTT-WOC2002

2

0

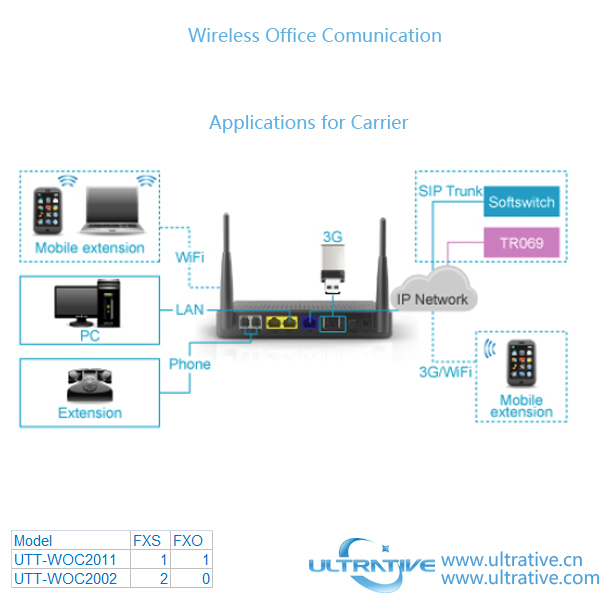

Applications for Carrier

  • Provide internet and voice service via 3G or Ethernet
  • Support Mobile extension
  • The integration of WiFi / 3G router and telephone system helps to reduce deployment and maintenance cost
  • Support IMS / NGN compatible SIP as well as TR069 for centralized management
  • Provide new service through firmware upgrade

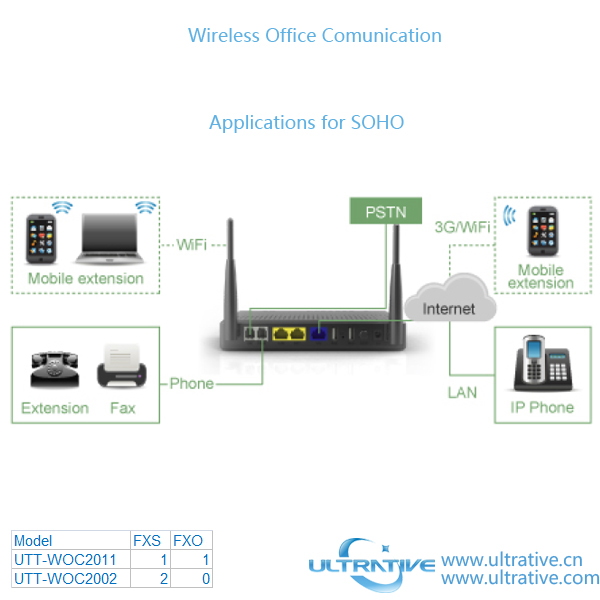

Application for Small Business



  • One system with all communication functions that help to grow business and save budget
  • Compatible with mobile voice and video communication terminals, such as SIP phones, soft phone on handset, computer or tablets, and provide mobile extension for employees
  • Powerful 3G/4G and wireless-N broadband router capability to build-up office network on-fly
  • Dual USB2.0 ports to support USB storage and turns your low-cost printer into a shared network printer

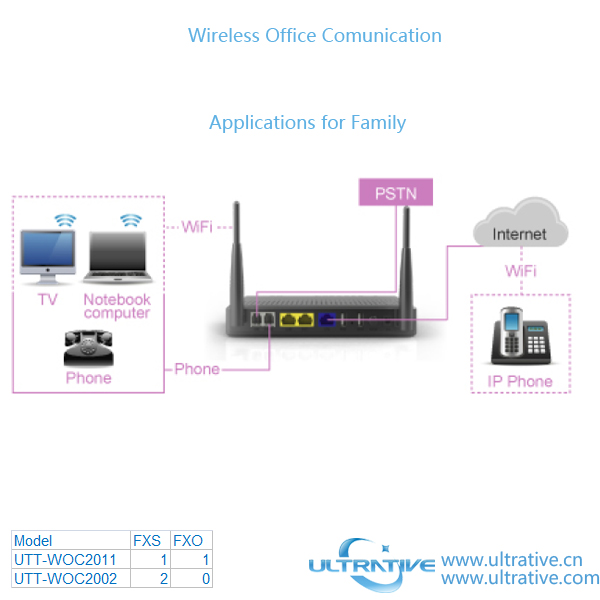

Application for Home Users



  • Build-up wireless digital home network to interconnect wireless and wired line terminals, such as telephone, IPAD, surveillance webcam, digital camorra, USB storage and etc
  • Built-in IP telephony server function allows family members and friends to call home or each other through Internet.
  • Get rid of Ethernet cables and phone lines in your home, and the terminals and network appliances are free to move







Specifications

Basics

Data rate

300Mbps

WiFi Standards

IEEE 802.11b/g/n, 802.3, 802.3u

3G Standards

WCDMA, CDMA2000

WiFi Bund Rate

2.4??2.4835GHz

IPPBX

Auto Attendant

IVR with time schedule, queuing, operator handling,
soft console for call monitoring and click to transfer

Incoming Call

DID, caller ID, call rejection, call waiting,
forking (direct a call to dual terminals), call forwarding,
do not disturb, distinctive ring patterns, CRBT

Call Pickup

Call pickup

Making Call

Intercom, white list, select trunk with dial prefix, speed dial,
hot line (immediate and delay)

Dial-in System Access

Authentication with PIN, authentication with caller?ˉs phone number

Extension Features

Blind transfer, consultation transfer, call transfer to PSTN,
call hold, park, three-way conference, recording *
recording on-fly *

SIP Proxy

Support up to 16 SIP clients

SIP Trunk

IMS/NGN

Multi-site

Inter-site calling via IP network, outbound trunk sharing

Soft Pad

Click-to-call, contact list, presence, call history
listen to recording and voice message *

Media Stream

G.711/G.729A codec, echo cancellation, busy tone detection
Fax: G.711 pass-through, T.38 relay *

Video Protocol

H.264£?MPEG-4

Network Features

WAN Connection Type

Static IP, DHCP, PPPoE, PPTP, L2TP, 3G

Networking Protocals

IEEE802.11b/g/n,802.11s/e/r/I,802.3,802.3u,802.1d/p/q/x,CSMA/CA,
CSMA/CD, TCP/IP, DHCP, ICMP, PPPoE, HTTP, SNTP, LLTD,DNS relay,
SNTP client, IGMP, Telnet, UPnP, FTP

Advanced WiFi Features

Change/disable SSID broadcast, 802.1x, WDS, VPN, wireless roaming

Wireless Security

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS ( PIN and push button) ,
client filtering

Management

Traffic statistics, syslog, remote Web configuration,
configuration file import and export, firmware upgrade through Web

NAT

Port mapping, DMZ

Qos

WMM & WMM power save, bandwidth control, 802.1P, DSCP

Firewall

IP/MAC binding for anti ARP spoofing, IP/MAC filtering
website filtering

Authentication

FCC

Support

CE

Support





Note

*  The feature is unsupported by the latest version. Please refer to the release notes for later resolution.



Environment requirement

  • Working temperature: 0ºC ~ 40ºC
  • Storage temperature: -40ºC ~ 70ºC
  • Working humidity: 10% ~ 90% RH (non conducing)
  • Storage Humidity: 5% ~ 90% RH (non conducing)



Physical specification

  • LEDs: STU, PWR, USB, WAN, LAN, Phone / Line, WLAN, WPS
  • Dimension: 182 x 136 x 30 mm
  • Net weight: 300g
  • Gross weight: 600g



Power supply

    • Power adapter: DC 9V-12V, 1A
    • Power consumption: 7W
